Inside Cargo Air Shower Tunnel

    • Inside Cargo Air Shower Tunnel
    • Inside Cargo Air Shower Tunnel
    • Inside Cargo Air Shower Tunnel
  • Inside Cargo Air Shower Tunnel

    उत्पाद विवरण:

    Place of Origin: Guangdong, China (Mainland)
    ब्रांड नाम: Zhisheng
    प्रमाणन: ISO 9001/CE/ROHS
    Model Number: AS-3800T-2.6-AD

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days after receive prepayment
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    Condition: New EX Dimension: W3800*D2600*H2300MM
    In Dimension: W1800*D2600*H2100MM Doors: Double leaf sliding doors
    Wind speed: 22-25m/s Class: 100 class
    Material: Power coated steel for outside Color: White
    हाई लाइट:

    clean room air showers

    ,

    dust free room



    Stainless Steel Inside Cargo Air Shower Tunnel For Clean Room With Automatic Doors



    Doors:Automatic Double Leaf Sliding Doors



    Door Size: 1800mm x2100mm



    Description:



    Cargo Air Shower is self-contained units, installed at the entrance of a clean room and other controlled environment chambers



    for minimizing the entry of dust particles and other particulate matters into the working area.



     Air Shower is designed to provide and maintain clean room conditions for research applications and particle sensitive manufacturing processes.



    These energy efficient units are fully self-contained and well equipped to provide and sustain a highly sterile working environment.



    Our versatile Air Showers are quite adept at controlling the level of contamination for particle sensitive processes



    such as disc drive and semiconductor manufacturing, pharmaceutical drug testing and for research applications



    involving molecular biology and biochemical experiments, cell and tissue culture experiments etc.



    They are available in both standard and customized designs to suit the requirements of the industry.



    The entire air shower assembly is HEPA/ULPA filtered, pre-wired and tested, ready to use with a simple plug-in,



    therefore providing an unmatched ease of operation. Moreover, the use of high quality construction materials



    ensures unparalleled manufacturing quality, whereas the highly efficient blowers and motors ensure long lasting dependable results.





    Features:



    1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.



    (One door in open state, the other door must in close state. When people enter air shower, the system will



    shower automatically by photoelectric sensor)



    2. Air shower time from 1 to 99 seconds which can be adjustable



    3. Adopt Pre filter and HEPA filter



    4. The door, bottom-board, nozzles are used of stainless steel, good appearance.



    5. When air shower is used to pass cargo, it is without bottom-board.



    Optional accessory:



    1. Manual swing door / automatic sliding door/High speed scroll shutter door



    2. HEPA filter or ULPA filter



    3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304



    4. Common fluorescent lamp / UV Sterilizer lamp



    5. With voice announce





    Parameter:



    Product type  Stainless Steel Inside Cargo Air Shower Tunnel For Clean Room With Automatic Doors
    Material for casing T=1.2MM Power coated steel for outside, SS304 for inside
    Material for doors Stainless steel 304
    Nozzles Stainles steel
    Door leaf Doubleleaf
    Door type Sliding doors
    Blowing way 3-side blowing
    Control system

    English intelligent control panel with human voice

    Locks Electric interlocked
    HEPA filter efficinecy: 99.99%
    Pre filter G3
    Light Philips brand
    Photoelectric sensor OMRON brand
    Shower time 0-99s adustable
    Spurt wind speed 25-27m/s above
    Power supply 380V/50HZ/3PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



     size and specificaton:



    Product Stainless Steel Inside Cargo Air Shower Tunnel For Clean Room With Automatic Doors
    Model AS-3800T-2.6-AD
    External dimensions (mm) W3800*D2600*H2300MM
    Internal dimensions mm W1800*D260*H2100MM
    Doors 2 sets of SS double-leaf sliding doors
    Door closer NONE
    Lock  electric interlocked
    Suitable  People and Goods
    Nozzles 16+16+18=54 PCS(3-side blowing)
    Blower fan 6 sets
    Blow power(W) 2400W
    Weight(kg) Appro.1000
    HEPA filter size 610x610x90mm
    HEPA filter qty 6 PCS
    HEPA filter efficiency H13
    Photolectric sensor ORMON 2 PCS
    Fluorescent Lamp Philips 3x 20W
    Nozzle diameter 32mm
    Air shower time 0-99 s Adjustable
    Spurt wind speed 22-25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

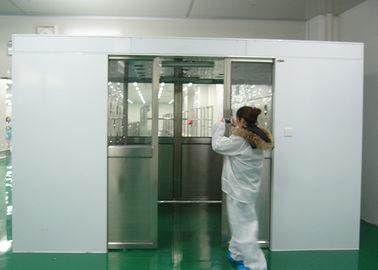

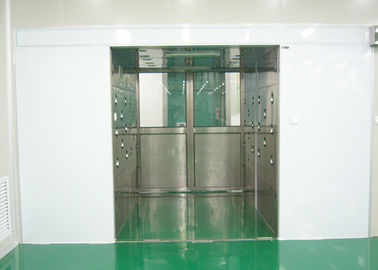

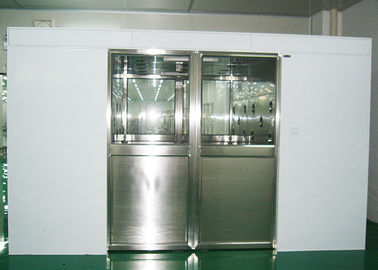

    Air shower Details:

    Inside Cargo Air Shower Tunnel 0Inside Cargo Air Shower Tunnel 1





    Drawing of Air Shower Tunnel



    Inside Cargo Air Shower Tunnel 2





    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
