Single Leaf Sliding Doors Air Shower Room

Single Leaf Sliding Doors Air Shower Room

    • Single Leaf Sliding Doors Air Shower Room
    • Single Leaf Sliding Doors Air Shower Room
    • Single Leaf Sliding Doors Air Shower Room
  • Single Leaf Sliding Doors Air Shower Room

    उत्पाद विवरण:

    Place of Origin: Guangdong, China (Mainland)
    ब्रांड नाम: Zhisheng
    प्रमाणन: ISO 9001/CE/ROHS
    Model Number: AS-1800D-2-AD

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days after receive prepayment
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    Condition: New EX Dimension: W1800xD2000xH2150MM
    Doors: Single leaf sliding doors Wind speed: 22-25m/s
    Class: 100 class
    हाई लाइट:

    dust free room

    ,

    air shower cleanroom



    Cart Air Shower Tunnel With Width 1200MM Single Leaf Sliding Doors For Material And Goods



    Description:



    Air Shower Tunnel are classifieds for human and material entries.



    It is the most effective for self-controlled and clearing off dust particles from clean room  personnel to reduce the contamination of products and clean room equipments.



    The air shower is mounted at entrance to clean room and other sterilized area.



    It is used in effectively manner for purification by high efficiency of (HEPA) filtered air reduces the contamination.



    The dirtied air is purified and re-circulates through pre-filters within the unit.


    The Air shower system  is an auto controlled interlocking systems for entrance, such that the entry and exit doors are electronically interlocked and photoelectric sensor suited.



    Air shower systems are made (Constructed) from SS304, GI powder coated, EPOXY painted.



    The main function of the air shower is to purify the dust air, such that it used HEPA (0.3micron) and Pre filters.



    Disposable / washable pre-filters with 90% arrestance of dust air to extend the life of the main HEPA filter. It is designed in such a way to ensure that the lowest noise and vibration level is < 60 db.

    Air Shower Specifications

    Filter: Twelve inch HEPA (High Efficiency Particulate Air) type, PSL challenged, zero probed. Minimum efficiency of 99.99% at .3 microns.



    Pre-filter: One inch bonded polyfiber media minimizes surface-loading. Low wall return to HEPA filter atop unit. Quick release grille.



    Blowing type: single-side blowing, double-side blowing, three-side blowing.



    Operation Instruction



    1.Put air shower on the correct location, connect the power wires of air shower with the power wires,



    There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line. The power supply is AC380V/50HZ/3 phases.



    2. In order to make sure air shower to work normally and the cleanliness of workshop, please kindly use air shower according to the following correct method.



    2.1 Please check if there are any people in air shower before you enter it. When air shower is working entrance door and exit door are electronic interlocked, it is forbidden to open the door at this moment.



    2.2 Put hand toward to Open switch, the entrance sliding door will open , enter air shower, then entrance sliding door will be close automatically, photoelectric sensor is reacted by people or goods, blower fan will be



    blowing automatically (The air shower time is set 15seconds at factory, it is forbidden to change the air shower time during blowing), after blowing, exit sliding door open automatically, go out air shower,



    then exit sliding door will be close automatically.



    Attentions:



    1. The power of this equipment requires 380V/50HZ/3PH. If the airflow is very low when using the first time, the reason is fan reversal, you should exchange the phase.



    This equipment is electronic interlocked, while one door in open state, or air shower time, please don’t open the other doors, or the electronic lock will be broken.



    2. The terminals on the circuit board, L is the connection of Live line, N is the connection of Null line, PE is the connection of Earth Line.



    3. In order to make sure the efficiency of blowing and cleanliness, in general, primary filters is changed once half year and HEPA filter a year.



    Parameter:



    Product type
    Cart Air Shower Tunnel With Width 1200MM Single Leaf Sliding Doors For Material And Goods
    Material for casing T=1.2MM Power coated steel for outside, SS304 for inside
    Material for doors Stainless steel 304
    Nozzles Stainles steel
    Door leaf single leaf
    Door type Sliding doors
    Blowing way 2-side blowing
    Control system

    English intelligent control panel with human voice

    Locks Electric interlocked
    HEPA filter efficinecy: 99.99%
    Pre filter G3
    Light Philips brand
    Photoelectric sensor OMRON brand
    Shower time 0-99s adustable
    Spurt wind speed 25-27m/s above
    Power supply 380V/50HZ/3PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



     Size and specificaton:



    Product
    Cart Air Shower Tunnel With Width 1200MM Single Leaf Sliding Doors For Material And Goods
    Model AS-1800D-2-AD
    External dimensions (mm) W1800*D2000*H2150MM
    Internal dimensions mm W1200*D2000*H2000MM
    Doors 2 sets of SS Single-leaf sliding doors
    Door closer NONE
    Lock  electric interlocked
    Suitable  People and Goods
    Nozzles 12+12=24PCS(2-side blowing)
    Blower fan 4sets
    Blow power(W) 1600W
    Weight(kg) Appro.480
    HEPA filter size 610x610x90mm
    HEPA filter qty 4 PCS
    HEPA filter efficiency H13
    Photolectric sensor ORMON 1 PCS
    Fluorescent Lamp Philips 2x 20W
    Nozzle diameter 32mm
    Air shower time 0-99 s Adjustable
    Spurt wind speed 22-25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

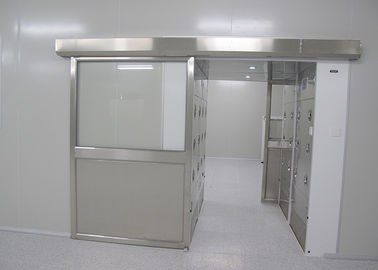

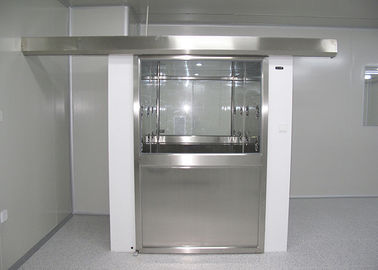

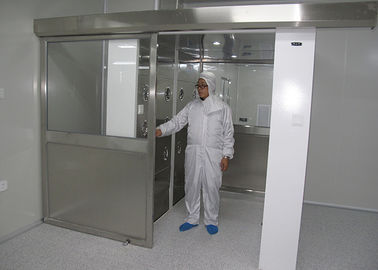

    Pictures Of Air Shower Tunnels:

    Single Leaf Sliding Doors Air Shower Room 0Single Leaf Sliding Doors Air Shower Room 1





    Drawing of Air Shower Tunnel



    Single Leaf Sliding Doors Air Shower Room 2



    Can custom air showers be manufactured?



    We offers both standard and custom air showers. Please contact us for more information.



    Is it possible to alter the settings on the air shower?



    Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
