Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person

प्रमाणन
चीन Dongguan Zhisheng Purification Technology Co., Ltd. प्रमाणपत्र
चीन Dongguan Zhisheng Purification Technology Co., Ltd. प्रमाणपत्र
ग्राहक समीक्षा
ZHISHENG company provide high quality air shower room and good sevice. Miss Rita Guo will provide the drawing and details to us to confirm at order.

—— Subramaniam Muthusamy

Miss Rita Guo is a nice person, she is very patient to explain anything which we are confused, besides, she is professional on air shower.

—— ORAI CO.LTD

मैं अब ऑनलाइन चैट कर रहा हूँ

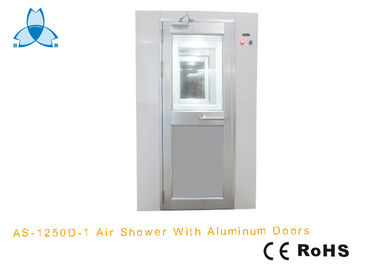

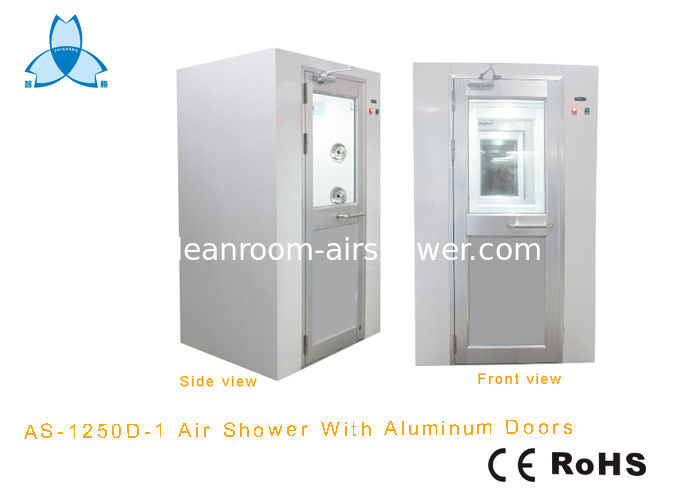

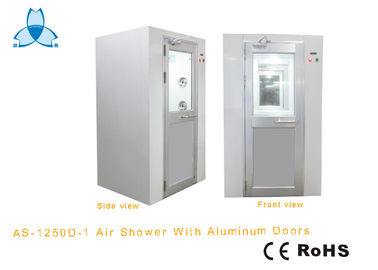

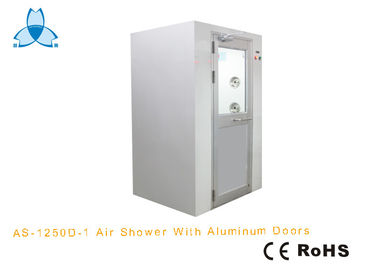

Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person

Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person
Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person

बड़ी छवि :  Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person

उत्पाद विवरण:
Place of Origin: Guangdong, China (Mainland)
ब्रांड नाम: Zhisheng
प्रमाणन: ISO 9001/CE/ROHS
Model Number: AS-1250D-1
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person

वर्णन
Voltage: 380V/50HZ/3PH, Power(W): 1000W
Weight: 250KG Clean room: 100 class
Blowing side: Two side Wind speed: 22-25m/s
Door: Manual Aluminum doors
हाई लाइट:

air shower room

,

हवा स्नान प्रणाली

Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person



Description:



Clean Room Air Shower protects cleanroom environment from contamination.



It can enhance cleanroom performance by removing surface contamination from clothing and garments of person.

This model is suitable for one persona one time.

Air Shower equipped with pre-filter and HEPA, by double-layers filtration system to ensure high air cleanness level.

Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.



Features:



Product type Clean Room Air Shower
Material for casing 1.2mm cold rolled steel with powder coated for mainbody
Material for doors aluminum alloy with half glass
Nozzles Stainless steel
Door leaf Single leaf
Door type Manual swing door
Blowing way Top-side blowing
Control system English intelligent control panel with human voice
Locks Electric mortise lock
HEPA filter efficinecy: H13
Pre filter G3
Light Philipines brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 22-25m/s above
Power supply 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



Size and specificaton:





Product Clean Room Air Shower
Model AS-1220D-1
External dimensions (mm) W1220*D1000*H2100MM
Internal dimensions WxHxD(mm) W790*D900*H1945MM
Suitable person one person
Nozzles 12 (two-side blowing)
Blow power(W) 1000W
Weight(kg) Appro.250
HEPA filter size 610x610x69mm
HEPA filter qty 1 PCS
HEPA filter efficiency 99.99% @ 0.3um
Nozzle diameter 32mm
Air shower time 0-60 s Adjustable
Spurt wind speed 20~25m/s
Power Supply 380V/50Hz/3Ph
Control system Microcomputer control circuit board




Note: Customer's size and specification can be acceptable.



Drawing:



Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person 0





Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.





Air shower inside:



Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person 1

Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person 2





Circuit Board:



Two Side Blowing Clean Room Air Shower With Manual Aluminum Doors For One Person 3


Packaging & Shipping



Plywood case


Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
