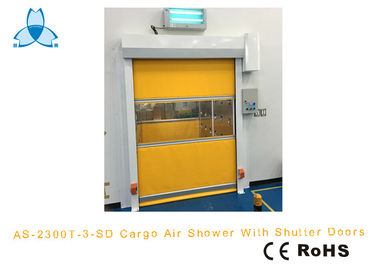

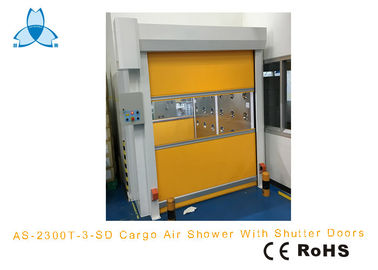

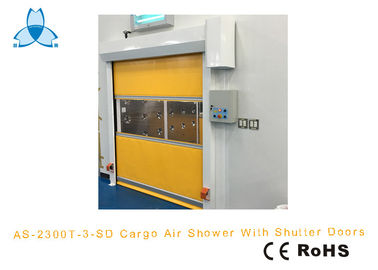

Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart

Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart

    • Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart
    • Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart
    • Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart
  • Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart

    उत्पाद विवरण:

    Place of Origin: Guangdong, China (Mainland)
    ब्रांड नाम: Zhisheng
    प्रमाणन: ISO 9001/CE/ROHS
    Model Number: AS-2300T-2.6-SD

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days after receive prepayment
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    Condition: New Ex Dimension: W2300xD2600xH2300MM
    Doors: PVC High Speed Shutter Doors Control: PLC
    Wind speed: 22-25m/s Class: 100 class
    हाई लाइट:

    dust free room

    ,

    air shower cleanroom



    Largo Cargo Air Shower Tunnel With Soft PVC High Speed Shutter Doors For Cart



    Doors: Soft PVC High Speed Shutter Door



    Width: 1800mm



    Description:



    Air Shower Tunnel  for clean room is a kind of partial clean equipment with rather strong universality and



    is installed at the partition between the clean and non-clean rooms.



    Air Showers and Tunnels supply high volumes of recirculated, dust free, air to lift contaminants from



    personnel, while they stand, or walk through the specially constructed chamber.



    ZHISHENG air shower is specially designed for the filtration of air. Our supplied air shower is commonly



    used for the decontamination of the people before entering into the cleanroom facilities.



    Our supplied air shower tunnel is available at very cost effective rates.





    Blowing type: single-side blowing, double-side blowing, three-side blowing.



    Features:



    1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.



    (One door in open state, the other door must in close state. When people enter air shower, the system will



    shower automatically by photoelectric sensor)



    2. Air shower time from 1 to 99 seconds which can be adjustable



    3. Adopt Pre filter and HEPA filter



    4. The door, bottom-board, nozzles are used of stainless steel, good appearance.



    5. When air shower is used to pass cargo, it is without bottom-board.



    Optional accessory:



    1. Manual swing door / automatic sliding door/High speed scroll shutter door



    2. HEPA filter or ULPA filter



    3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304



    4. Common fluorescent lamp / UV Sterilizer lamp



    5. With voice announce





    Parameter:



    Product type Largo Cargo Air Shower Tunnel With Soft PVC High Speed Shutter Doors For Cart
    Material for casing T=1.2MM Steel with Spray painting
    Material for doors Soft PVC
    Nozzles Stainles steel
    Door leaf SIngle
    Door type High Speed Shutter Doors
    Blowing way 3-side blowing
    Control system

    English intelligent control panel with human voice and

    PLC control system

    Locks Electric interlocked
    HEPA filter efficinecy: 99.99%
    Pre filter G3
    Light Philips brand
    Photoelectric sensor OMRON brand
    Shower time 0-99s adustable
    Spurt wind speed 22-25m/s
    Power supply 380V/50HZ/3PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



     size and specificaton:



    Product Largo Cargo Air Shower Tunnel With Soft PVC High Speed Shutter Doors For Cart
    Model AS-2300T-2.6-SD
    External dimensions (mm) W2300*D2600*H2300
    Internal dimensions WxHxD(mm) 1800*D2600*H2000
    Doors 2 sets of High speed shutter doors
    Door closer NONE
    Lock  electric  interlocked
    Suitable  Both People and Goods
    Nozzles 18+18+12=48 PCS(3-side blowing)
    Blower fan 4 sets
    Blow power(W) 4000W
    Weight(kg) Appro.780
    HEPA filter size 610x610x90mm
    HEPA filter qty 4 PCS
    HEPA filter efficiency H13
    Photolectric sensor ORMON 2 PCS
    Fluorescent Lamp Philips 2x 20W
    Nozzle diameter 32mm
    Air shower time 0-99 s Adjustable
    Spurt wind speed 22-25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor




    Air shower Details:



    Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart 0Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart 1



    Drawing Of Air Shower Tunnel



    Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart 2Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart 3Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart 4Large Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors For Cart 5



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.



    All equipment is shipped with a comprehensive use’s manual with testing report.



    Additional IO/OQ/GMP document is available upon request.



    Contact our sales representative for specific warranty details or document request.



    How often do the HEPA filters need to be replaced?



    The frequency at which the HEPA filters need to be replaced depends on each application



    Test when the filters need to be replaced if air flow at the air nozzles reduces significantly.





    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
