|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||10-15 days after receive prepayment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 Set/Sets per Month|
|Doors:||PVC Fast Rolling Shutter doors||Control:||PLC|
|Wind speed:||22-25m/s||Class:||100 class|
clean room air showers,
dust free room
3 Modulars Automatic Control Fast Rolling Shutter Door Cleanroom Cargo Air Shower For Large Goods
Doors: Soft PVC Fast Speed Scrolled Doors
Door Net Width: 1800mm
Air Shower Tunnel for clean room is a kind of partial clean equipment with rather strong universality and
is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters
to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the
clean area and maintain the normal working status.
We design, fabricate and install air shower for clean room personnel.
These clean room air shower tunnels are especially used in different kinds of laboratories, pharmaceutical industries and animal facilities;
where they act as entry systems that decontaminate personnel before entering into clean environment.
Our engineering team carefully designs and configures an air shower that meets your specific working conditions.
Tunnel and conveyor type units are also constructed for carts, equipment and cargo etc.
We in-house construct air shower; therefore, we offer our customers facility to order according to their specific requirements.
Our air shower units are available in different design configurations and material of construction
. Our air shower prices are competitive, quality is unmatched and each unit is covered with excellent warranty terms.
Where 5 or more person occupancy per cycle is required air shower tunnel comes into effect.
Air shower tunnels are designed with standard widths 48" and 60". Customized units are also available with maximum length of 30 ft.
Air showers are one of most demanding arrangements in most of the industries; where, removing fine particles attached to persons and products is mandatory.
Such industries are: animal facilities, pharmaceutical, chemical research lab, electronics and semi-conductor, optical and aerospace etc.
Air showers are designed in various configurations such as Entry exit type, L type entry exit, one way entry and two way exit type and tunnel and conveyor type etc. If you are unsure whi
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
|Product type||3 Modulars Largo Cargo Air Shower Room Tunnel With Soft PVC Fast Speed Shutter Doors For Robot Line|
|Material for casing||T=1.2MM Steel with Spray painting for outside, stainless steel 304 for inside, no base|
|Material for doors||Soft PVC|
|Door type||High Speed Shutter Doors|
|Blowing way||3-side blowing|
English intelligent control panel with human voice and
PLC control system
|HEPA filter efficinecy:||99.99%|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||22-25m/s|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
size and specificaton:
|Product||3 Modulars Automatic Control Fast Rolling Shutter Door Cleanroom Cargo Air Shower For Large Goods|
|External dimensions (mm)||W2300*D2950*H2300|
|Internal dimensions WxHxD(mm)||1800*D2950*H2000|
|Doors||2 sets of High speed shutter doors|
|Suitable||Both People and Goods|
|Nozzles||18+18+18=54 PCS(3-side blowing)|
|Blower fan||4 sets|
|HEPA filter size||610x610x90mm|
|HEPA filter qty||6PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 2 PCS|
|Fluorescent Lamp||Philips 3x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

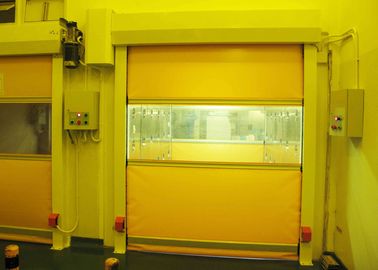

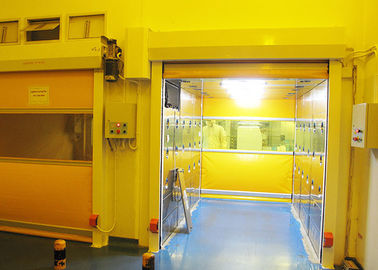

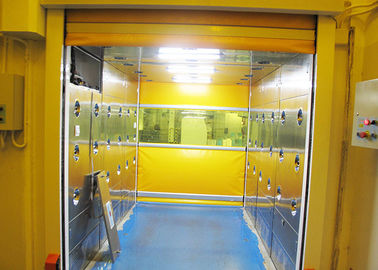

Air shower pictures:
Drawing Of Air Shower Tunnel
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
