|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||10-15 days after receive prepayment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 Set/Sets per Month|
|हालत:||नई||पूर्व आयाम:||W3780 * D11550 * H2150MM|
|दरवाजे:||एकल पत्ती स्लाइडिंग दरवाजे||हवा की गति:||22-25m / एस|
dust free room,
air shower cleanroom
90 Degree Turn Personnel Air Shower Tunnels - Clean Room Equipments , Painted Steel Material
We offer a wide range of Air Shower which is recommended for superior quality and efficiency.
These products are specially designed to supply concentrated Class 100 air flow.
The contamination sticking to the clothing surface can easily be blown off form before a man enters a clean room.
Manufactured with the latest technologies, our air shower is capable of passing the pressurized air through adjustable nozzles at a velocity of 7500 approx. feet per minute.
These nozzles are installed in side walls and ceiling. In addition to this, the contaminated is allowed to pass down through aluminum grated hollow walls and floor.
Our air shower is a fully automatic system and has the electromagnetic door interlocking system which ensures to open the door one at a time.
Filter: Twelve inch HEPA (High Efficiency Particulate Air) type, PSL challenged, zero probed. Minimum efficiency of 99.99% at .3 microns.
Pre-filter: One inch bonded polyfiber media minimizes surface-loading. Low wall return to HEPA filter atop unit. Quick release grille.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
1.Put air shower on the correct location, connect the power wires of air shower with the power wires,
There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line. The power supply is AC380V/50HZ/3 phases.
2. In order to make sure air shower to work normally and the cleanliness of workshop, please kindly use air shower according to the following correct method.
2.1 Please check if there are any people in air shower before you enter it. When air shower is working entrance door and exit door are electronic interlocked, it is forbidden to open the door at this moment.
2.2 Put hand toward to Open switch, the entrance sliding door will open , enter air shower, then entrance sliding door will be close automatically, photoelectric sensor is reacted by people or goods, blower fan will be
blowing automatically (The air shower time is set 15seconds at factory, it is forbidden to change the air shower time during blowing), after blowing, exit sliding door open automatically, go out air shower,
then exit sliding door will be close automatically.
1. The power of this equipment requires 380V/50HZ/3PH. If the airflow is very low when using the first time, the reason is fan reversal, you should exchange the phase.
This equipment is electronic interlocked, while one door in open state, or air shower time, please don’t open the other doors, or the electronic lock will be broken.
2. The terminals on the circuit board, L is the connection of Live line, N is the connection of Null line, PE is the connection of Earth Line.
3. In order to make sure the efficiency of blowing and cleanliness, in general, primary filters is changed once half year and HEPA filter a year.
|Product type||Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors|
|Material for casing||T=1.2MM Power coated steel for outside, SS304 for inside|
|Material for doors||Stainless steel 304|
|Door leaf||single leaf|
|Door type||Sliding doors|
|Blowing way||3-side blowing|
English intelligent control panel with human voice
|HEPA filter efficinecy:||99.99%|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||25-27m/s above|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Size and specificaton:
|Product||Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors|
|External dimensions (mm)||W3780*D11550*H2150MM|
|Internal dimensions mm||W3000*D11200*H1925MM|
|Doors||2 sets of SS Single-leaf sliding doors|
|Suitable||People and Goods|
|HEPA filter size||610x610x90mm|
|HEPA filter qty||16 PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 2 PCS|
|Fluorescent Lamp||Philips 8x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

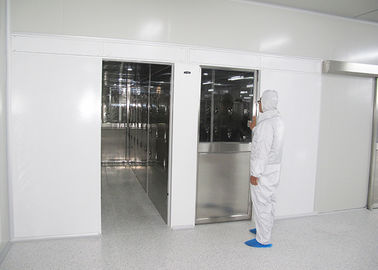

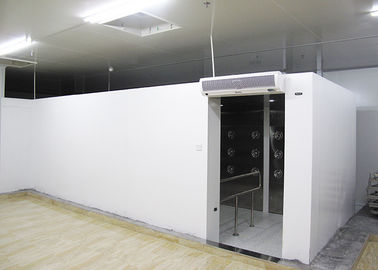

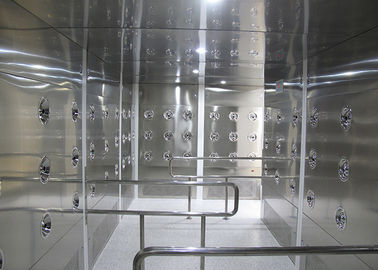

Pictures Of Air Shower Tunnels:
Drawing of Air Shower Tunnel
Can custom air showers be manufactured?
We offers both standard and custom air showers. Please contact us for more information.
Is it possible to alter the settings on the air shower?
Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
