|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||about 15 days upon receipt of deposit|
|Supply Ability:||200sets per month|
|Material:||Stainless steel for inside and outside||Internal size:||W700xD1600xH1600|
|Type:||Air Shower||Wind speed:||>23m/s|

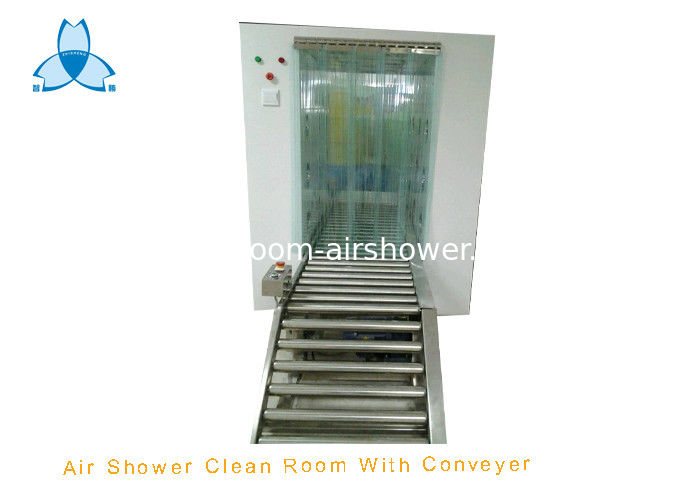

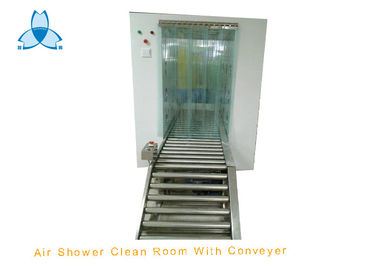

Air Shower Pass Box With Conveyor
Air Shower Pass Box is matched with conveyor, used for full automatic producing line which required clean class level.
Pass box material: Powder coated steel or stainless steel
Pass box can do air shower and non air shower type, on the based design of pass box plus with automatic control system.
External dimension: W1300xD1600xH1700MM
Internal dimension: W700xD1600xH1600MM
Material: Cold rolled steel with powder coated for outside and inside, no base
Doors: Anti-static PVC curtain, each one E-stop swtich on entrance and exit side.
Blower Fan: 2 sets
HEPA filter: 610x610x69mm 2 PCS
HEPA efficiency: 99.99%
Pre filter:G3 2 PCS
Light: 2 pcs x 18W
UV light: 2 PCS
Nozzles: stainless steel 24 pcs
Blowing type: 3-side blowing
Air velocity: 22-25m/s
Photoelectric sensor: OMRON brand
Operation control: English IC control panel.
1. Anti-static PVC curtain for doors, prevent airflow convection, avoiding to pollute clean room.
2. When cargo go into pass box, it will blowing automatically.
3. HEPA filter firstname.lastname@example.org
4. G3 PRE Filter
The conveyor material: Stainless steel rollers or belt.
The conveyor running: forward working/backward working/Both forward and backward working.
The speed of conveyor: 0-0.1m/s
Optional accessories for Pass Box:
2. UV light
we can offer special size and requirement as per our clients.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
