Portable Softwall Modular Clean Room / Class 100 Clean Booth Class 1000 Purification

Portable Softwall Modular Clean Room / Class 100 Clean Booth Class 1000 Purification

MOQ: 1 set
standard packaging: plywood case
Delivery period: 10-15 days after receive prepayment
payment method: Western Union, T/T
Supply Capacity: 20 sets per month
Detail Information
Place of Origin
Guangdong, China (Mainland)
ब्रांड नाम
zhisheng
प्रमाणन
ISO 9001/CE/ROHS
Model Number
ZS-CB
Frame:
Aluminum or stainless steel
Material:
PVC curtain on the mainbody
Purification Grade:
Class 1000
FFU size:
1170x570x230mm
FFU material:
Galvanzied for casing
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
10-15 days after receive prepayment
Payment Terms:
Western Union, T/T
Supply Ability:
20 sets per month
High Light:

ffu fan filter

,

hepa filter fan

Product Description

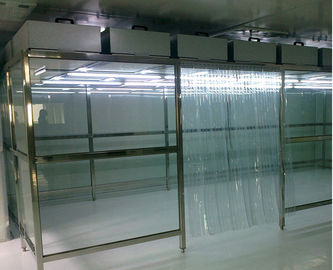

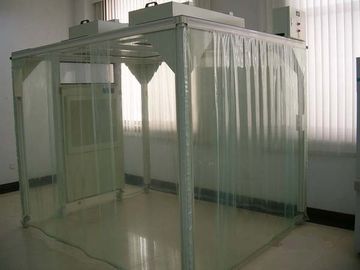

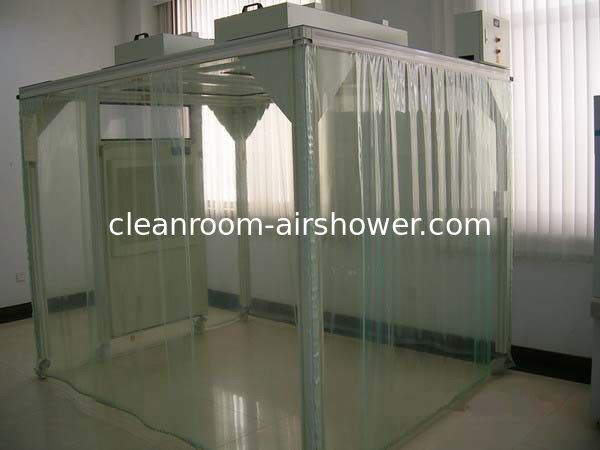

Softwall Modular Clean Room/ Clean Booth



Softwall Modular Cleanroom/Clean Booth provide an economical, versatile solution to clean manufacturing requirements in semiconductor, medical device, and many other industries.



Portable, expandable, and easy to assemble/disassemble, these cleanrooms are also available on an accelerated delivery program to meet your tight production schedule.



Clean Booth is cost efficient alternative to a clean room. ISO 5 cleanliness is achievable with this versatile equipment.



Flexible and economical, it may be easily relocated or expanded as required.



The aluminum/stainless steel framework offers a stable structure yet requires minimal construction time.



Material:



Frame of clean booth: Aluminum alloy or stainless steel

Body of clean booth: PVC anti-static curtains / Plexiglass / Acrylic sheet

Shell of FFU material: Cold rolled steel with powder coated, Aluminum coated zinc platet,or stainless steel 201/304



Features:



1).Clean booth can offer the part of high clean environment ,can be installed on the top of the place

that need to clean.The air that come out from the FFU will be filtered by the pre filter and HEPA filter ,then the

clean air enter into the work zone vertically to insure the purification requirement

2).the noise less than 52dBA,the air velocity is 0.35-0.6m/s

3). the dimension of the clean booth ,customizes design is available

4).it can be used by single and also can be connected to clean area in strip

5). purification rank : 100 class,1000 class or 10000class



Optional Accessory:



Pressure gauge



Drawing:

Portable Softwall Modular Clean Room / Class 100 Clean Booth Class 1000 Purification 0



FFU Size and Specification:



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for Casing(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold rolled steel with powder coated, Aluminum coated zinc plate,or stainless steel 201/304
Rated Air flow(m3/h) 1000 1500 1800 2000
Air velocity 0.35/0.48/0.6 m/s
ESP 80-120pa
Hepa fiter Size (mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13
Pressure Drop ≤220pa
Fan (motor) Voltage AC 220-240V/50Hz
Current 0.76A
Power 80-120W
Noise(dB) 48 50 52 53
Weigth(KG) 22 24 28 32





Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

40% prepayment by T/T at order, the balance of payment before shipment.
