PVC Curtain ISO 8 Softwall Modular Clean Room / Clean Booth With Fan Filter Unit

PVC Curtain ISO 8 Softwall Modular Clean Room / Clean Booth With Fan Filter Unit

    • PVC Curtain ISO 8 Softwall Modular Clean Room / Clean Booth With Fan Filter Unit
    • PVC Curtain ISO 8 Softwall Modular Clean Room / Clean Booth With Fan Filter Unit
    • PVC Curtain ISO 8 Softwall Modular Clean Room / Clean Booth With Fan Filter Unit
  • PVC Curtain ISO 8 Softwall Modular Clean Room / Clean Booth With Fan Filter Unit

    उत्पाद विवरण:

    Place of Origin: Guangdong, China (Mainland)
    ब्रांड नाम: ZHISHENG
    प्रमाणन: ISO 9001/CE/ROHS
    Model Number: ZS-CB

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Frame: Aluminum alloy Wall: PVC curtian
    Class: ISO 8 FFU: Galvanzied-aluminum

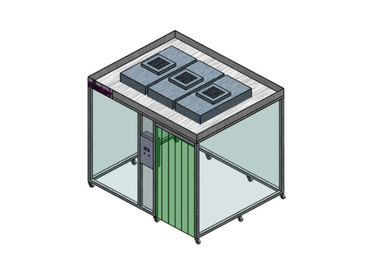

    Soft Wall Modular Clean Room/ Clean Booth With  Fan Filter Unit


    Soft wall Modular Clean rooms provide an economical, versatile solution to clean manufacturing requirements in semiconductor, medical device,and many other industries.


    Portable,expandable,and easy to assemble/disassemble,


    these clean rooms are also available on an accelerated delivery program to meet your tight production schedule!



    A. The clean room can be quickly installed in the existing ordinary environment, and improve the working environment.

    B. Low cost, high speed and easy upgrading.

    C. The structure is solid and can stand independently and freely.

    D. Cleanliness: from Class 100 to Class 100,000



    Bio-pharmaceuticals, medical treatment, food, LCM, camera module, touch screen, optical module, FILM, and other production or experimental environment.




    Descriptation Soft wall modular clean room
    Cleanliness Class 100 to Class 100,000
    Dimension (LXWXH) Designed as per customer’s requirements
    FFU Dimension 2X2, 2X4, 4X4 optional
    Casing Stainless steel, aluminum alloy
    Power supply 110V/60HZ/AC/DC,220V/60HZ/AC/DC
    Filter Mini pleat HEPA filter/ULPA filter optional
    Material of support frame Aluminum alloy / stainless steel
    Material of wall Anti-static PVC thin film or soft curtain
    Thickness: 0.5MM-2MM
    Material of Ceiling Aluminium-plastic panel


    Description Soft wall modular clean room
    Lighting Clean lighting LED/T5 optional
    Air conditioner Design as per requirements Constant temperature air conditioning /constant temperature and constant humidity air-conditioner; optional
    Air shower Optional
    Pass box Optional
    buffer room Optional
    Airflow floor Optional
    Assembly line Optional
    Clean bench Optional
    Other clean room facilities Carry out design and installation as per customer requirements

    Note: Besides specification above, we can customize as required.


    Size of Soft Wall Clean Room


    Common specifications on module clean room
    Size (mm) Quantity of installed ceiling Number of filter of level 209 as per the Federal Reserve standard
    1 10 100 1,000
    8x8(2438x2438) 8 5-8 4-8 3-6 2-3
    8x12(2438x3658) 12 7-12 6-12 4-8 3-5
    8x16(2438x4877) 16 10-16 8-16 6-11 4-6
    12x12(3658x3658) 18 11-18 9-18 6-13 5-7
    12x16(3659x4877) 24 14-24 12-24 8-17 7-10
    16x16(4877x4877) 32 19-32 16-32 11-22 8-13

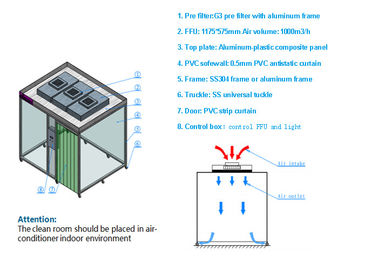

    Details of All Parts

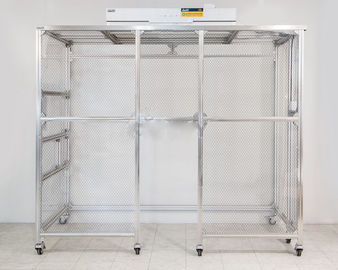

    Structured frame: The frame of soft wall clean booth has two selections: SUS stainless steel and aluminum alloy;
    The stainless steel can resist corrosion and has high structural strength; aluminium alloy structure leads to easy assembly, standard accessories and good air tightness;


    Mainbody Ceiling:Aluminium-plastic panel is light in weight, easy to install, and has multiple colors for selection;

    Top Wall: Transparent anti-static PVC is low in price. The anti-static PVC sheet may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber. It is applicable to modular clean room that requires high demand for cleanliness and static.


    FFU: Excellent energy-saving draught fan will be adopted, whose noise and energy consumption are on the low side. Meanwhile, the draught fan can be designated by customers, such as EBM of Germany. The casing is made of powder coated steel, galvanized aluminum steel,, stainless steel.


    Control system: The control system has been developed by ZHISHENG on its own. FFU is controlled in group or is under centralized control of PLC. It can regulate the wind speed, differential pressure, temperature and humidity of EFU (applicable to system with air conditioner).


    Other optional accessories:
    Air shower
    Pass box
    Automatic door
    Fast rolling door
