| एमओक्यू: | 50 pieces |
| मानक पैकेजिंग: | plywood case |
| वितरण अवधि: | about 15 days upon receipt of deposit |
| आपूर्ति क्षमता: | 500 pieces per month |
Standard EN7 7 9 Plastic Frame Compact v Type Hepa Air Filter
Applications:
It is applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room, and soon.
It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system
Advantages:
Material and operating conditions:
| External frame | Aluminum Alloy/GI/Stainless steel |
| Sealant | Polyurethane |
| Separator | Clapboard or aluminum foil |
| Filter media | Fiberglass /HV fiberglass / PP |
| Maximum operating temperature | 80°C |
| Maximum operating humidity | 100% |
| HEPA filter Efficiency | ≥99.99% |
Features:
1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
95%-99.99995%@0.3um (EN1822).
7: Each air filter with test report accompany
Size and Specification:
| Model | Dimensions(mm) WxHxD |
Rated air flow (m³/h) |
Initial resistance (Pa) |
Efficiency (EN1822) |
Frame | Media |
| ZSZV-3300 | 592x592x292 | 3300 | ≤120 (Media: PP)) ≤220 (Media:fiber glass) |
F7-H13 | Plastic/ galvanized sheet |
PP or Fiberglass |
| ZSZV-1600 | 592x292x292 | 1600 | ||||
| ZSZV-3000 | 592x490x292 | 3000 | ||||
| ZSZV-1600-2 | 592x287x292 | 1600 | ||||
| ZSZV-800 | 287x287x292 | 800 | ||||
| ZSGV-3600 | 610x610x292 | 3600 | ||||
| ZSGV-1800 | 610x305x292 | 1800 |

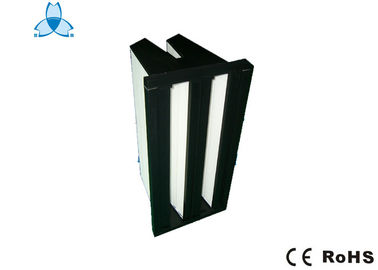

Pictures of HEPA filter
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
|
|
