| एमओक्यू: | 50 pieces |
| मानक पैकेजिंग: | plywood case |
| वितरण अवधि: | about 15 days upon receipt of deposit |
| भुगतान विधि: | Western Union, T/T |
| आपूर्ति क्षमता: | 1000 pieces per month |

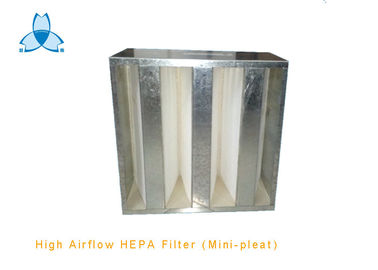

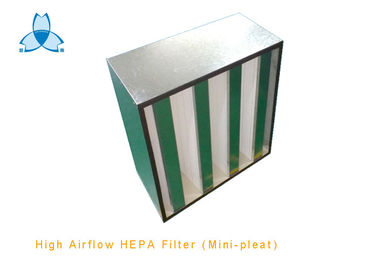

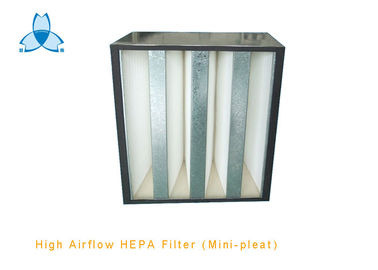

V Cell Mini Pleat HEPA Filter For High Airflow Air Handing Unit, 99.97% down 0.3 um
Description:
V cell HEPA filter applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room, and so on.It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system.
Features:
1.High dust holding capacity, easy installation, long life
2.Low initial pressure drop
3.Designed with V cell which makes it low resistant
4.Leak test one by one before delivery
5. Strong structured to make it runs stable under turbulence condition
6.Size can be customized
Material and operating conditions:
| External frame | Aluminum Alloy/GI/Stainless steel |
| Sealant | Polyurethane |
| Separator | Hot glue |
| Filter media | Fiberglass /HV fiberglass |
| Maximum operating temperature | 80°C |
| Maximum operating humidity | 100% |
| HEPA filter Efficiency | ≥99.97% |
Size and Specification:
| Model | Outside dimension (mm) |
Rated air flow (m3/h) |
Initial resistance (pa) |
Efficiency (%) |
Filter Media (pcs) |
| ZS-YZ-1000 | 295x595x295 | 1000 | ≤220 | 95-99.995% (F9-H14) |
4 |
| ZS-YZ-1500 | 595x595x295 | 1500 | 6 | ||
| ZS-YZ-2100 | 595x595x595 | 2100 | 8 | ||
| ZS-YZ-2700 | 595x595x295 | 2700 | 10 | ||
| ZS-YZ-3300 | 610x610x295 | 3300 | 12 |
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Packing:
Carton and Pallet
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
|
|
