Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window

Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window

एमओक्यू: 1 set
मानक पैकेजिंग: plywood case
वितरण अवधि: about 15 days upon receipt of deposit
आपूर्ति क्षमता: 200sets per month
विस्तार से जानकारी
Place of Origin
Guangdong, China (Mainland)
ब्रांड नाम
Zhisheng
प्रमाणन
ISO9001
Model Number
ZS-CC-01
Material:
cold rolled steel with powder coated
Lock type:
Mechanical interlock
Size(mm):
685*460*590
Color:
white
Type:
Clean Room Booth
Application:
Small Area
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
200sets per month
उच्च प्रकाश:

clean room pass thru

,

cleanroom pass through chambers

उत्पाद का वर्णन

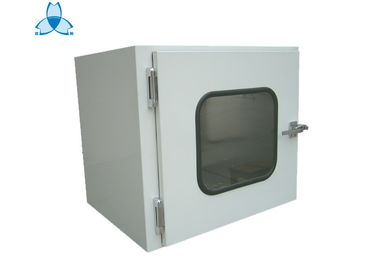

Laboratory Pharmaceutical Clean Transfer Window / Air Shower Pass Box




Laboratory Pharmaceutical Clean Transfer Window is a wall mounted used for controlling cross contamination between two zones.



Transfer window come with a mechanical or electrical interlock system so that only one door can be opened at a time.



Transfer window are available in powder coated steel, 304 stainless steel construction and 316 stainless steel construction.



Standard Features



  • Clear acrylic doors
  • Vinyl bulb gasket seals for the doors
  • stainless steel for inside
  • A mechanical interlock (except for units with fire rated doors)

Optional Features

  • HEPA filters
  • Fan filter units
  • Electric interlock system
  • Support brackets
  • Electro-polished finish for stainless steel pass box
  • Double wall construction (painted and stainless steel)
  • 304 Stainless Steel door frames with 1/4" thick clear tempered glass
  • Stainless steel/spring loaded door latch
  • UV light

Application



It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.

The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.



Standar size:



Model ZS-CC1 ZS-CC2 ZS-CC3
External dimensions (W x D x H) 685x460x590 785x660x690 985x660x890
Size for working area ((W x D x H) 500x400x500 600x600x600 800x800x600
Material Cold rollled steel with powder coated for outside, stainless steel for inside
Lock type mechanical interlock
Windows Clear Acrylic sheet





we can offer special size and requirement as per our clients.



Drawing:



Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window 0

Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window 1



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.
