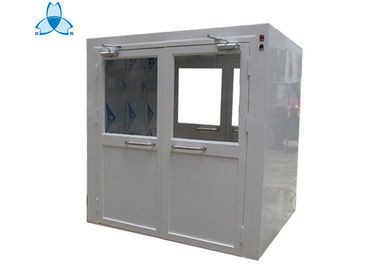

Big Area Dynamic Pass Box , Clean Room Pass Through Window With Double Leaf Swing Doors



Double Leaf Swing Doors Cold Rolled Steel Air Shower Pass Box With Electric nterlocked For Clean Room

Air shower pass box is used when materials enter a cleanroom from a ordinary room, or when materials enter a cleanroom of low cleanliness to one of high level of cleanliness. Air shower pass box removes dusts on the materials and avoids the dusts being brought to clean rooms. Cleanliness in the pass box can reach Class 100 after primary filters and HEPA filters. Widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy, auto glass and precision parts.

Features of Pass box :

Double-leaf Swing Doors

External dimension: W1700*D1600*H1800MM

Internal dimension: W1500*D1500*H1700MM

1 Door: Double-Leaf swing doors with half glass

2 . Door closer: 4 sets (90 degree hold open)

3 . Electric lock: 2 sets

4 . Lamp: 1x20W

Standard Features

• Clear acrylic doors
• Vinyl bulb gasket seals for the doors
• stainless steel for inside
• A mechanical interlock (except for units with fire rated doors)

Optional Features

• HEPA filters
• Fan filter units
• Electric interlock system
• Support brackets
• Electro-polished finish for stainless steel pass box
• Double wall construction (painted and stainless steel)
• 304 Stainless Steel door frames with 1/4" thick clear tempered glass
• Stainless steel/spring loaded door latch
• UV light

Application

It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.

Standar size:


we can offer special size and requirement as per our clients.

Drawing:



Drawing of Pass Box



Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.

Why you choose ZHISHENG Company ?

Professional service:

• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.

Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.
