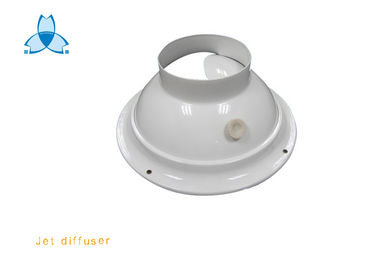

Aluminum Ball Jet Nozzle Diffuser For Air Conditioning HVAC
Model:ZS-QP-D
Material: aluminum alloy
Surface finish: Powder coated RAL9016 or white
Feature:
The inner diffusing ball can be rotated in any Direction off the diffuser centerline and a knob located on the ball surface isssued to control the air volume.
This type of diffuser is commonly used in the industrial application where the long throw and spot cooling are required
Application: Sidewall outlet type air distribution
Size :
Model | Ø A (mm) | Ø C (mm) | Ø D (mm) | Ø B (mm) |
QP-D-80 | 41 | 83 | 120 | 65 |
QP-D-125 | 65 | 134 | 175 | 100 |
QP-D-150 | 75 | 144 | 195 | 110 |
QP-D-200 | 108 | 208 | 258 | 165 |
QP-D-250 | 140 | 245 | 300 | 185 |
QP-D-315 | 165 | 308 | 365 | 231 |
QP-D-500 | 265 | 472 | 580 | 369 |
