| एमओक्यू: | 100 pcs |
| मानक पैकेजिंग: | plywood case |
| वितरण अवधि: | about 15 days upon receipt of deposit |
| आपूर्ति क्षमता: | 1000 pieces |
Fiber Glass Bag - Type Pocket Air Filter Can Be Used In Hospital
Features
(ASHRAE 52.2:2007) MERV8, MERV10, MERV12, MERV13,
MERV14, MERV15.
Applications
Features:
| Product type | Synthetic fiber pocket filter for second stage gas turbine |
| Media | Synthetic fiber(3-layer) / Mircro glass fiber |
| Frame | Galvanized /Aluminum /ABS plastic |
| Class | F5-F9 (EN799) |
| Average Efficiency | 45%; 65%; 85%; 95%; |
| Media color | White, Orange(Green), Pink, Yellow |
| Initial pressure drop | 50-120 pa (0.2-0.48 WG) |
| Final pressure drop | 200-500 pa(0.8-2 WG) |
| Operating temperature | 80 ºC |
| Humidity resistance: | 100% |
Standard size and specification:
| Model | Outside dimensions(mm) (WxHxD) | Rated air flow(m3/h) | Initial resistance (Pa) | Efficiency (class) | Pockets | Material | |||
| Dust-spot | EN799 | Frame | Media | ||||||
| ZS-F5 | 495x295x500 (20”x12”x20”) | 1000 | 50Pa | 40-50% | F5 (White / Yellow) | 5 |
Aluminum /Galvanized Sheet/ plastic |
Non-woven fabric (synthetic fiber) | |
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F6 | 495x295x500 (20”x12”x20”) | 1000 | 55Pa | 60-70% | F6 (Orange /Green) | 5 | |||
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F7 | 495x295x500 (20”x12”x20”) | 1000 | 110Pa | 75-85% | F7(Pinky) | 5 | |||
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F8 | 495x495x500 (20”x20”x20”) | 1800 | 120Pa | 90-95% | F8(Yellow) | 5 | |||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||

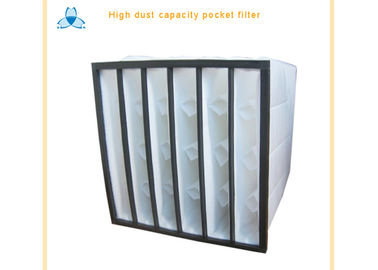

Picture:
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
|
|
