| एमओक्यू: | 100 pcs |
| मानक पैकेजिंग: | plywood case |
| वितरण अवधि: | about 15 days upon receipt of deposit |
| आपूर्ति क्षमता: | 1000 pieces |

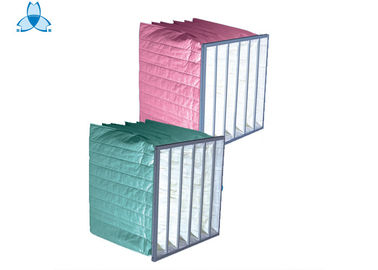

Rated Air Flow 1600 m3 / h - 3200 m3 / h For Pocket Air Filter
Features1:
1. Collect 1 to 5 micron particles. Between each pocket has a metal stick to make frame more firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.
2. Ultrasonic sealing make the filter more strong and not easy to broke
3. Adopt fine synthetic fiber instead of some fiberglass material
4. Material has antistatic fiber, large dust holding capacity and long working life.
5. Pocket mesh efficiency has five different type for choice: 45%, 65%, 85%, 95%, 98%.
6.Firm structure, large dust holding capacity, large air flow.
7.There are F8 (yellow,90-95%), F7 (Pink,75-85%), F6 (green, 60-70%), F5 (White,40-50%) available, with aluminum alloy, stainless steel or galvanized steel frame for selection.
8.Applicable in electronics, precision machinery, instruments, machinery, food and other industries and medium filtering for general air-conditioning ventilation systems.
Features2:
| Product type | Synthetic fiber pocket filter for second stage gas turbine |
| Media | Synthetic fiber(3-layer) / Mircro glass fiber |
| Frame | Galvanized /Aluminum /ABS plastic |
| Class | F5-F9 (EN799) |
| Average Efficiency | 45%; 65%; 85%; 95%; |
| Media color | White, Orange(Green), Pink, Yellow |
| Initial pressure drop | 50-120 pa (0.2-0.48 WG) |
| Final pressure drop | 200-500 pa(0.8-2 WG) |
| Operating temperature | 80 ºC |
| Humidity resistance: | 100% |
Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.
For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs
Standard size and specification:
| Model | Outside dimensions(mm) (WxHxD) | Rated air flow(m3/h) | Initial resistance (Pa) | Efficiency (class) | Pockets | Material | |||
| Dust-spot | EN799 | Frame | Media | ||||||
| ZS-F5 | 495x295x500 (20”x12”x20”) | 1000 | 50Pa | 40-50% | F5 (White / Yellow) | 5 |
Aluminum /Galvanized Sheet/ plastic |
Non-woven fabric (synthetic fiber) | |
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F6 | 495x295x500 (20”x12”x20”) | 1000 | 55Pa | 60-70% | F6 (Orange /Green) | 5 | |||
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F7 | 495x295x500 (20”x12”x20”) | 1000 | 110Pa | 75-85% | F7(Pinky) | 5 | |||
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F8 | 495x495x500 (20”x20”x20”) | 1800 | 120Pa | 90-95% | F8(Yellow) | 5 | |||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
Packing:
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
|
|
