एमओक्यू: | 1 set |
मानक पैकेजिंग: | Plywood case |
वितरण अवधि: | 15-20 days |
भुगतान विधि: | Western Union, T/T |
आपूर्ति क्षमता: | 100 sets per Month |

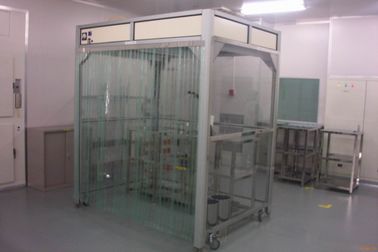

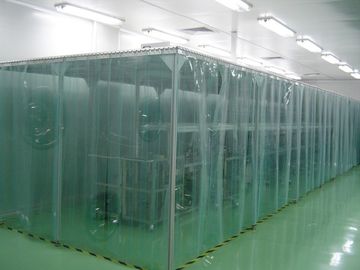

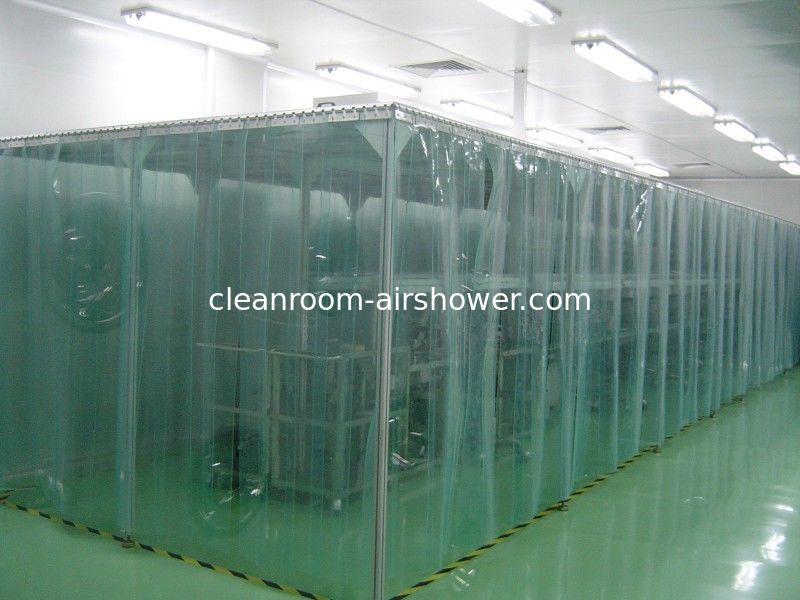

Anti-static PVC Softwall Clean Booth For Clean Room
Application:
Clean booth is for the pharmaceutical, microbiological research and scientific experiments, which require partial purification equipment.
Material:
Frame of clean booth: Aluminum alloy or stainless steel
Body of clean booth: PVC anti-static curtains / Plexiglass / Acrylic sheet
Shell of FFU material: Cold rolled steel with powder coated, Aluminum coated zinc platet,or stainless steel 201/304
Features:
1).Clean booth can offer the part of high clean environment ,can be installed on the top of the place
that need to clean.The air that come out from the FFU will be filtered by the pre filter and HEPA filter ,then the
clean air enter into the work zone vertically to insure the purification requirement
2).the noise less than 52dBA,the air velocity is 0.35-0.6m/s
3). the dimension of the clean booth ,customizes design is available
4).it can be used by single and also can be connected to clean area in strip
5). purification rank : 100 class,1000 class or 10000class
Optional Accessory:
Pressure gauge
Specification for FFU
Item Model | ZS-FFU610 | ZS-FFU915 | ZS-FFU1170 | ZS-FFU1220 | |
Size for Casing(mm) | 610x610x240 | 915x610x240 | 1170x570x240 | 1220x610x240 | |
Material | Cold rolled steel with powder coated, Aluminum coated zinc plate,or stainless steel 201/304 | ||||
Rated Air flow(m3/h) | 1000 | 1500 | 1800 | 2000 | |
Air velocity | 0.35/0.48/0.6 m/s | ||||
ESP | 80-120pa | ||||
Hepa fiter | Size (mm) | 610x610x69 | 915x610x69 | 1170x570x69 | 1220x610x69 |
Frame | Aluminum profile | ||||
Media | Fiberglass | ||||
Efficiency | H13 | ||||
Pressure Drop | ≤220pa | ||||
Fan (motor) | Voltage | AC 220-240V/50Hz | |||
Current | 0.76A | ||||
Power | 80-120W | ||||
Noise(dB) | 48 | 50 | 52 | 53 | |
Weigth(KG) | 22 | 24 | 28 | 32 |
