Polyurethane Sealant V Bank Filter For Mid - Level Air Box System

Polyurethane Sealant V Bank Filter For Mid - Level Air Box System

Polyurethane Sealant  V Bank Filter For Mid - Level Air Box System

उत्पाद विवरण:

Place of Origin: Guangdong, China (Mainland)
ब्रांड नाम: Zhisheng
प्रमाणन: ISO 9001, Rohs
Model Number: ZS-YZ-1500

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 50 pieces
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 500 pieces per month
अब से संपर्क करें
विस्तृत उत्पाद विवरण
Efficiency: 45-99% Separator: NON
Size: 595x595x295mm frame material: ABS plastic
Initial resistance (Pa): ≤220pa Porosity: 0.3Micro


≥ 0 . 3 Micron v Bank Filter Used For Air Box System For Mid - Level




1) Box body with galvanized steel or plastic, use of superfine polypropylene filter paper or glass fiber filter paper.



2) Each filter subject to stringent leak testing



3) Application: ≥0.3 Micron



4) Uses: Used wind volume of air purification equipment, such as air box system for mid-level





Industrial and commercial ventilation systems, centralized ventilation and air conditioning system of clean room


Material and operating conditions:


External frame Aluminum Alloy/GI/Stainless steel
Sealant Polyurethane
Separator Clapboard or aluminum foil
Filter media Fiberglass /HV fiberglass / PP
Maximum operating temperature 80°C
Maximum operating humidity 100%
HEPA filter Efficiency ≥99.99%





1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.

2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats

3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.

4: The sealant around the media so that the air filter without any air leaking,

the frame can be wooden, aluminum,galvanized or stainless steel.

5: Laser to scan the each air filter one by one,

6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

95%-99.99995%@0.3um (EN1822).

7: Each air filter with test report accompany


Size and Specification:


Model Outside dimension
Rated air flow
Initial resistance
Filter Media
ZS-YZ-1000 295x595x295 1000 ≤220 95-99.995%
ZS-YZ-1500 595x595x295 1500 6
ZS-YZ-2100 595x595x595 2100 8
ZS-YZ-2700 595x595x295 2700 10
ZS-YZ-3300 610x610x295 3300 12

Pictures of HEPA filter

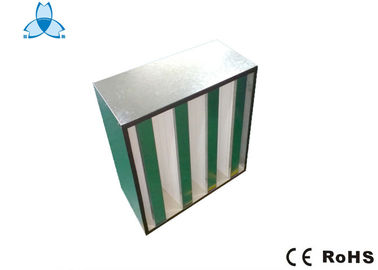

Polyurethane Sealant  V Bank Filter For Mid - Level Air Box System



Payment Term:


30% prepayment by T/T at order, the balance of payment before shipment.


Delivery time:


Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.


After sales service:


We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We care of your complain within 48hours.
