Gray Ventilation System V Bank Filter ABS Plastic Frame For Industry

Gray Ventilation System V Bank Filter ABS Plastic Frame For Industry

Gray Ventilation System V Bank Filter ABS Plastic Frame For Industry

उत्पाद विवरण:

Place of Origin: Guangdong, China (Mainland)
ब्रांड नाम: Zhisheng
प्रमाणन: ISO 9001, Rohs
Model Number: ZS-YZ-2700

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 50 pieces
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 500 pieces per month
अब से संपर्क करें
विस्तृत उत्पाद विवरण
Efficiency: 45-99% Color: gray
Size: 595x595x295mm frame material: gray ABS plastic
Rated air flow: 2700 m3/h Porosity: 0.3 um

Gray ABS Plastic Frame V - Bank Filter Application In Industry
V-type air filter is mainly used for filtration of more than 0.3μm dust particles, multi- V Mini-pleat design with large filtration area, low resistance, long service life, the use of waterproof ultra-fine glass fiber media, polypropylene plastic frame can be completely incinerated, and mounting flange frame is interchangeable with bag filter.
Air-conditioning system secondary filtration, achieve big air flow demand at low wind resistance.
Industrial and commercial ventilation systems, centralized ventilation and air conditioning system of clean room
Material and operating conditions:

External frameAluminum Alloy/GI/Stainless steel
SeparatorClapboard or aluminum foil
Filter mediaFiberglass /HV fiberglass / PP
Maximum operating temperature80°C
Maximum operating humidity100%
HEPA filter Efficiency≥99.99%

1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
95%-99.99995%@0.3um (EN1822).
7: Each air filter with test report accompany
Size and Specification:

ModelDimensions(mm) WxHxDRated air flow (m³/h)Initial resistance (Pa)Efficiency (EN1822)FrameMedia

≤120 (Media: PP))
≤220 (Media:fiberglass)

F7-H13Plastic/ galvanized sheet

PP or


Pictures of HEPA filter

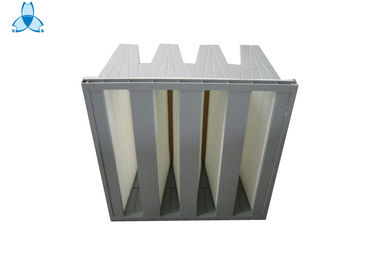

Gray Ventilation System V Bank Filter ABS Plastic Frame For Industry
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.


Delivery time:
Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
