| एमओक्यू: | 100 pcs |
| मानक पैकेजिंग: | plywood case |
| वितरण अवधि: | about 15 days upon receipt of deposit |
| आपूर्ति क्षमता: | 1000 pieces |
12 x 24 x 20 Inch Self-Supported High Dust Capacity Pocket Air Filter
1.High Efficiency
2.Synthetic Fiber
3.Custom size
4.Environmental Friendly
Application:
Applied for airport, hospitals and other air-conditioning ventilation systems.
Features:
| Product type | Synthetic fiber pocket filter for second stage gas turbine |
| Media | Synthetic fiber(3-layer) / Mircro glass fiber |
| Frame | Galvanized /Aluminum /ABS plastic |
| Class | F5-F9 (EN799) |
| Average Efficiency | 45%; 65%; 85%; 95%; |
| Media color | White, Orange(Green), Pink, Yellow |
| Initial pressure drop | 50-120 pa (0.2-0.48 WG) |
| Final pressure drop | 200-500 pa(0.8-2 WG) |
| Operating temperature | 80 ºC |
| Humidity resistance: | 100% |
Application field:
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
Standard size and specification:
| Model | Outside dimensions(mm) (WxHxD) | Rated air flow(m3/h) | Initial resistance (Pa) | Efficiency (class) | Pockets | Material | |||
| Dust-spot | EN799 | Frame | Media | ||||||
| ZS-F5 | 495x295x500 (20”x12”x20”) | 1000 | 50Pa | 40-50% | F5 (White / Yellow) | 5 |
Aluminum /Galvanized Sheet/ plastic |
Non-woven fabric (synthetic fiber) | |
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F6 | 495x295x500 (20”x12”x20”) | 1000 | 55Pa | 60-70% | F6 (Orange /Green) | 5 | |||
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F7 | 495x295x500 (20”x12”x20”) | 1000 | 110Pa | 75-85% | F7(Pinky) | 5 | |||
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F8 | 495x495x500 (20”x20”x20”) | 1800 | 120Pa | 90-95% | F8(Yellow) | 5 | |||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||

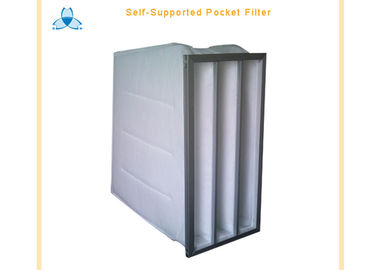

Picture:
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
|
|
