|Medium Material:||Fiberglass||Separator:||hot-melt beads|
V Bank Air Filters,
V Cell Filter
Standard EN7 7 9 Plastic Frame Compact v Type Hepa Air Filter

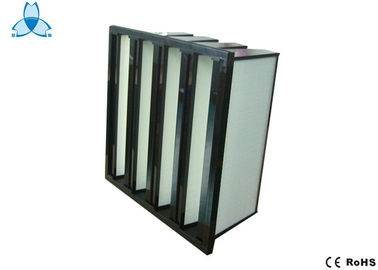

V-type air filter uses thick mini-pleat filter elements in V patterns to increase the filtration area in an effective way, featuring high air volume, low resistance and long service life, which is mainly used in HVAC systems in the clean room. The filters of this type include different efficiencies ranging from medium efficiency (F6-F9), sub-high efficiency (H10-H12) to high efficiency (H13-H14) for options. W-type filters include box type and W type, with the frames made of plastics, galvanized sheets, aluminum plates, stainless steel plates and plastics sprayed steel plates etc.
Material and operating conditions:
|External frame||Aluminum Alloy/GI/Stainless steel|
|Separator||Clapboard or aluminum foil|
|Filter media||Fiberglass /HV fiberglass / PP|
|Maximum operating temperature||80°C|
|Maximum operating humidity||100%|
|HEPA filter Efficiency||≥99.99%|
1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
7: Each air filter with test report accompany
Size and Specification:
Pictures of HEPA filter
30% prepayment by T/T at order, the balance of payment before shipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
